K5 kiosk system
1 unit
May arrive with bracket B fitted.
CHECK YOUR KIT
Parts checklist
Check the parts against the packing sheet supplied with your kiosk. Some components may be pre-installed. The pictures below are 3D installation references.

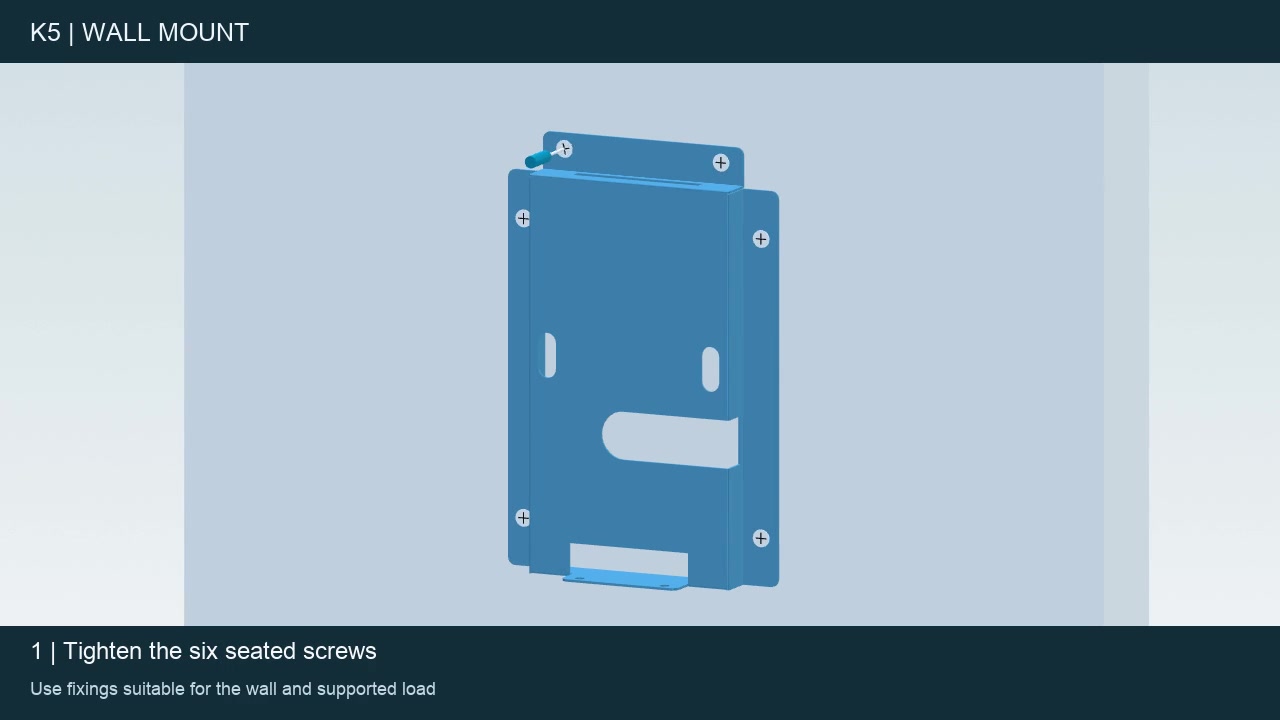

Bracket A — wall side
1 bracket
Six wall fixing positions; engagement section faces upward.

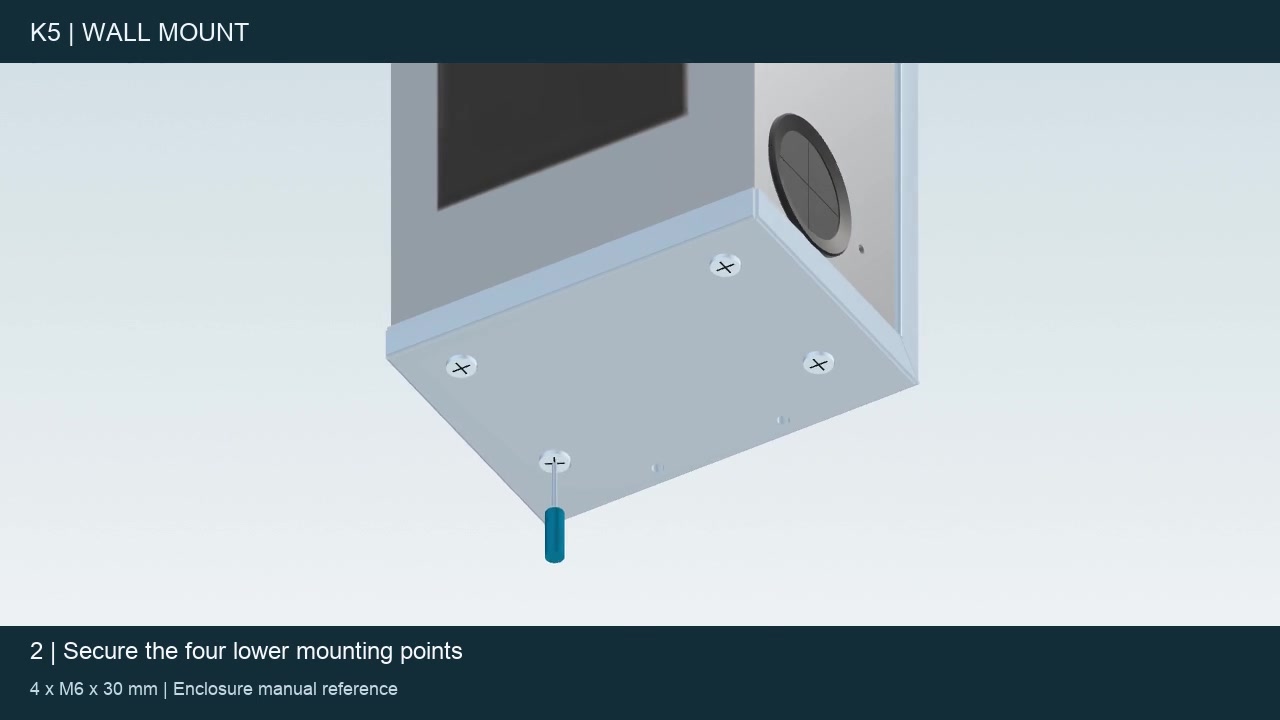

Bracket B — kiosk side
1 bracket
Rear and lower mounting points.

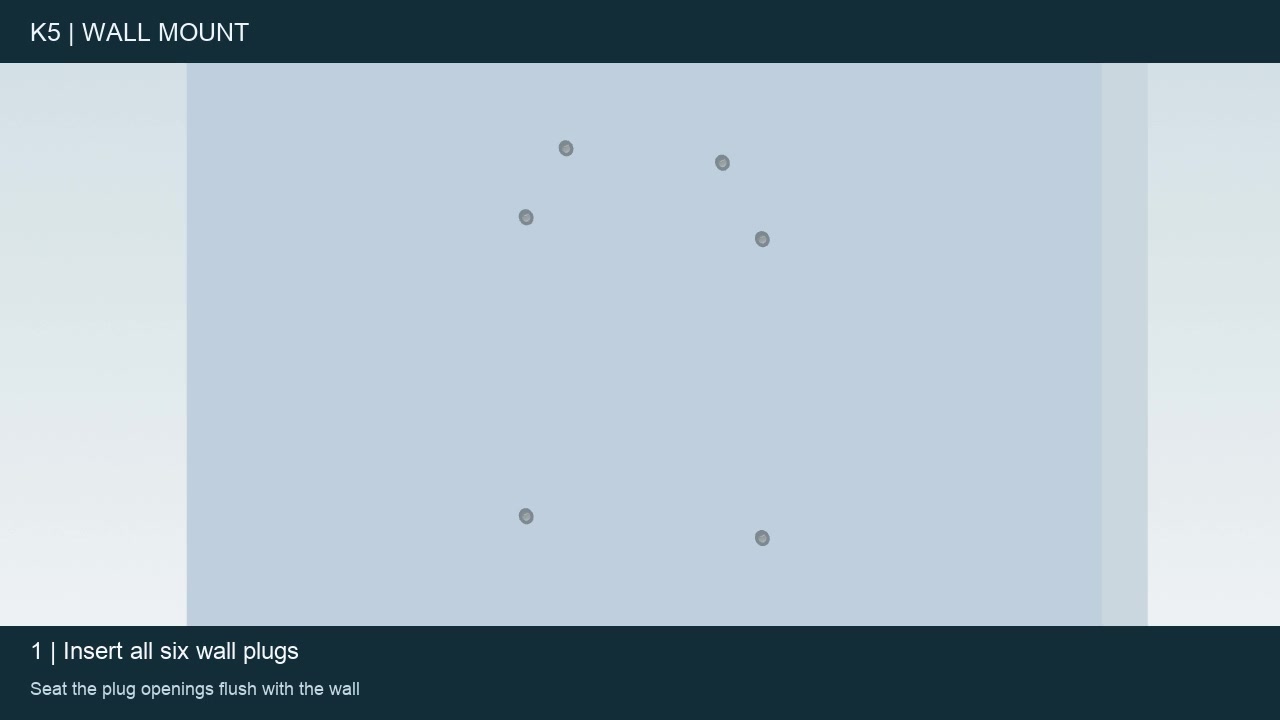

Wall fixing kit
6 fixing positions
The animation illustrates Ø10 × 50 mm plugs and Ø6 × 50 mm self-tapping screws. Use fixings approved for your wall.
Rear and lower bracket screws
2 rear + 4 lower in the reference
Reference: M4 × 30 mm rear / M6 × 30 mm lower. Check the supplied kit.

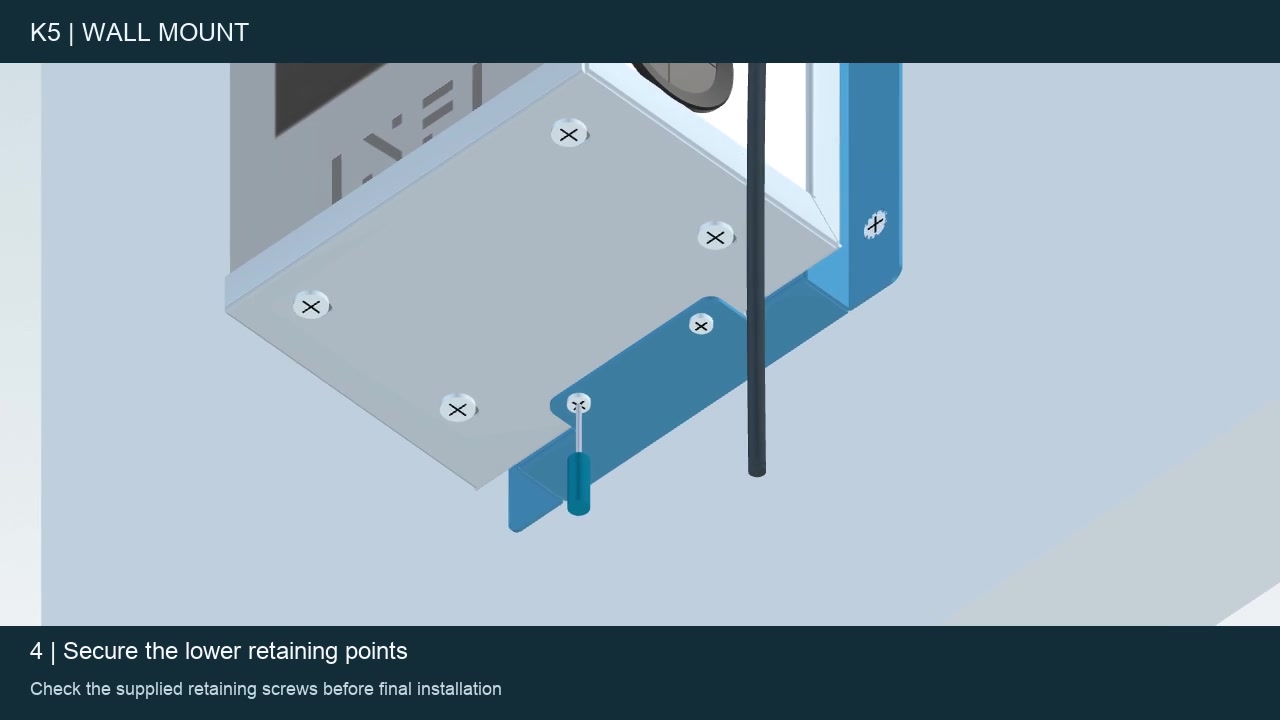

Lower retaining screws
2 screws
Keep these for the final locking step; use the supplied screws.

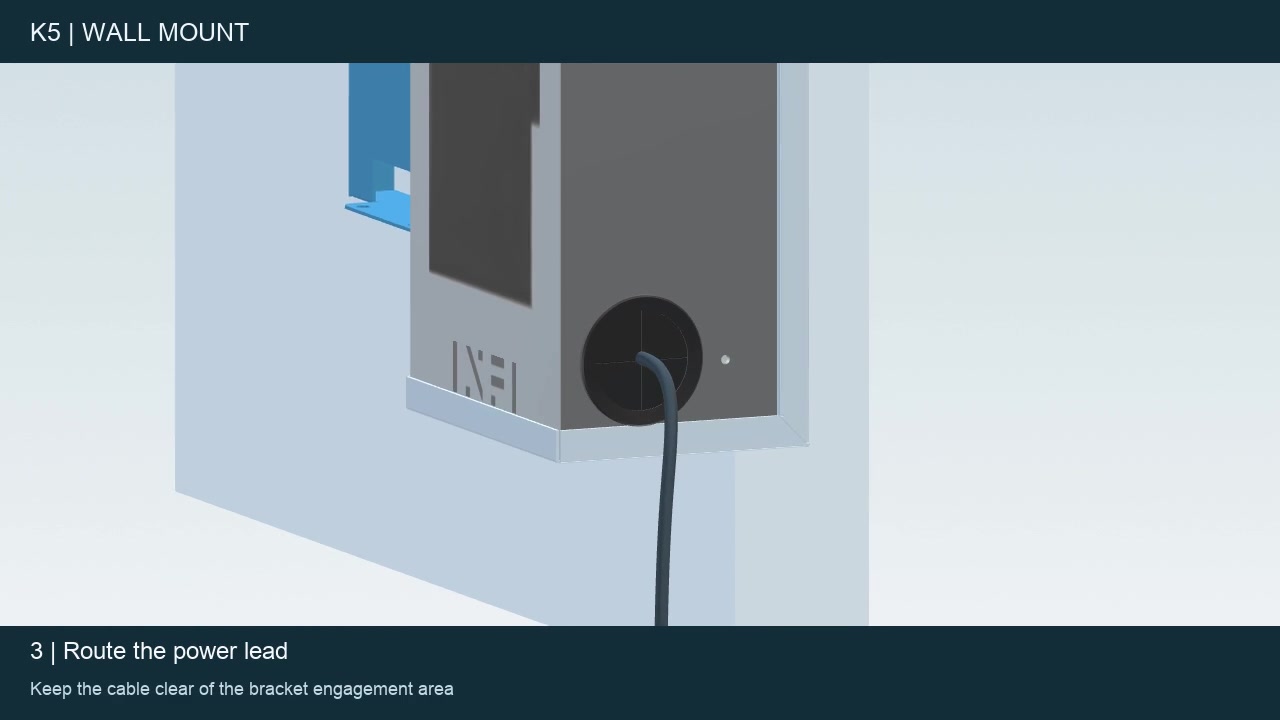

Power / network leads and cable grommet
As supplied for your configuration
Check the leads and cable protection supplied with the kiosk.

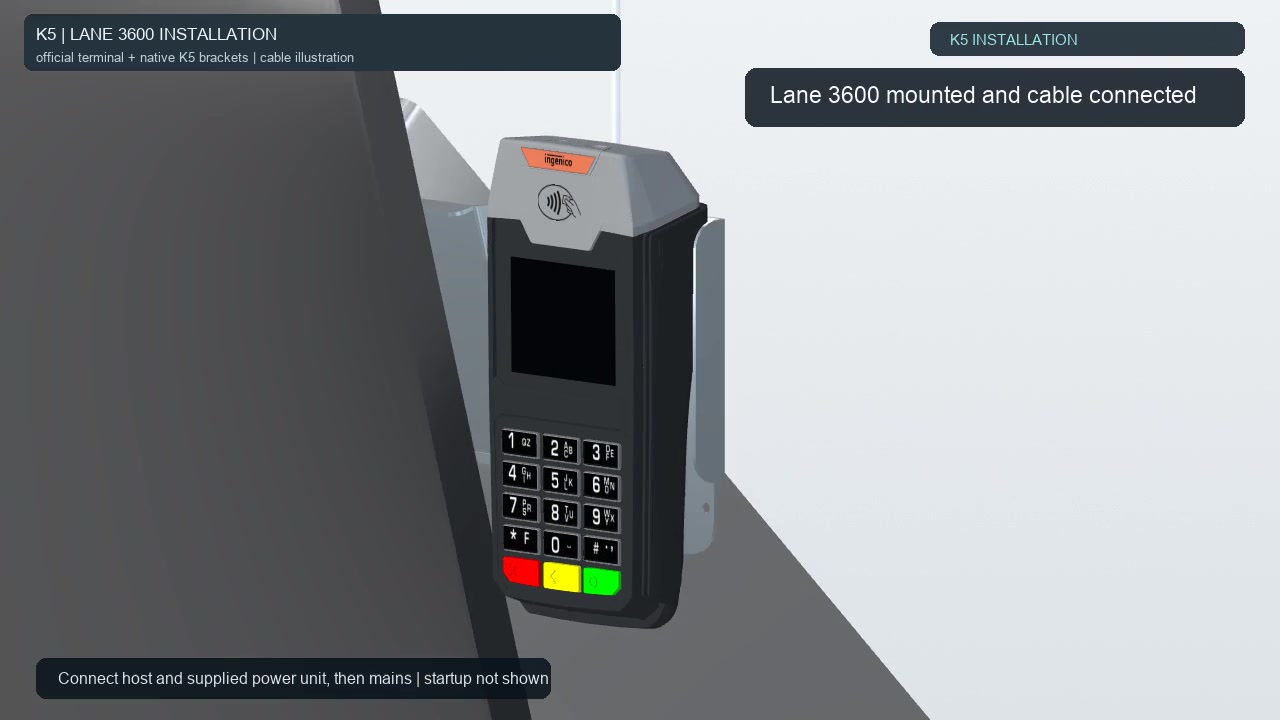

Payment-device mounting kit
If ordered
Lane 3600 example shown. Use the kit matching your selected device below.
Reference fasteners are shown to help identify the assembly. The actual supplied kit and approved wall fixing instructions govern installation.
BEFORE YOU BEGIN
Prepare the site and tools
Tools and handling
- Phillips screwdriver and the tools specified for your fixings.
- Drill with a bit approved for the selected wall anchors.
- Level, marker and a clean protected work area.
- Two installers for lifting and hanging the kiosk.
- Keep external power disconnected during assembly.
Wall requirements
- A load-bearing or solid brick wall is recommended; use suitable fixings for concrete.
- Reinforce hollow brick with a suitable backing plate before mounting.
- Recommended support capacity: at least 40 kg (88 lb) at the mounting location.
- Minimum wall thickness: 12 cm (120 mm).
- Check for concealed water pipes and electrical wiring before drilling.
Have a qualified installer confirm the wall, backing plate and fixings are suitable.
Assembly at a glance
- Prepare and fix bracket A to the wall.
- Prepare the rear switch, bracket B and cables.
- Hang the kiosk and install both retaining screws.
- Fit the selected payment device and perform the final checks.
1
STEP 1 OF 9

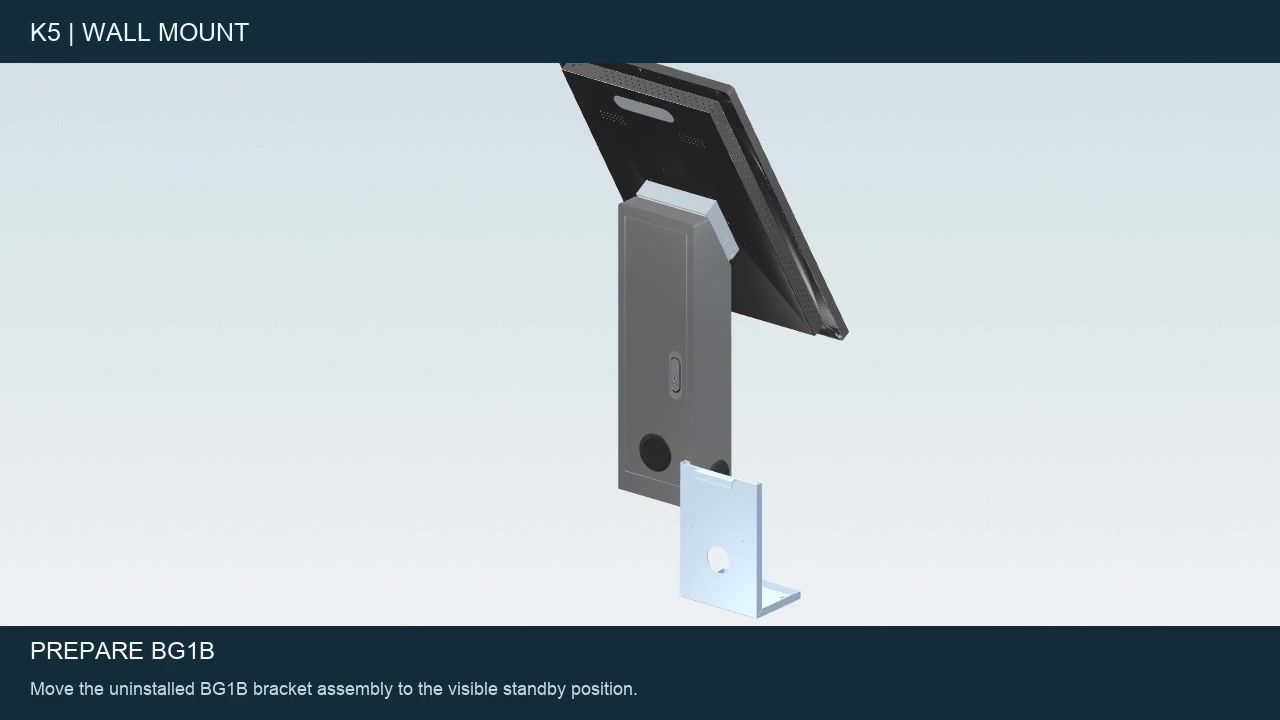

Identify and separate the brackets
Do this
Identify bracket A for the wall and bracket B for the rear of the kiosk. If they arrive assembled, separate them and keep the two lower retaining screws for the final locking step.
2
STEP 2 OF 9

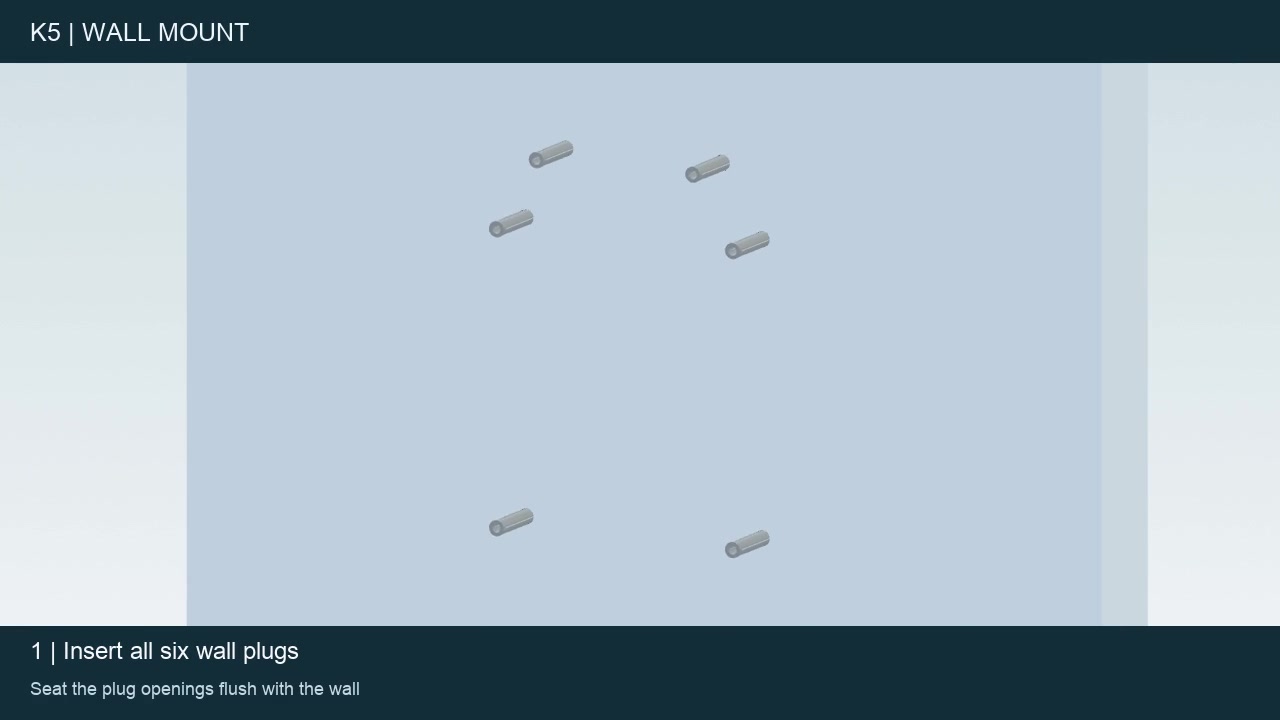

Position the wall bracket and mark the holes
Do this
Hold bracket A level at the approved installation position, with its engagement section facing upward. Use the actual bracket to mark all six fixing positions.
The illustration shows prepared fixing positions. Confirm the layout using your actual bracket.
3
STEP 3 OF 9
Prepare the wall holes and anchors
Do this
Check for concealed pipes and wiring. Use the drill diameter, hole depth and installation method specified for the approved wall fixings. Clear drilling dust, then seat the anchors as instructed by their manufacturer.
The existing video demonstrates anchor insertion. Drilling must follow the instructions for the selected wall fixings.
4
STEP 4 OF 9
Secure bracket A to the wall
Do this
Align bracket A with the six fixing positions. Start all six wall screws, then tighten evenly with the correct tool. Check that the bracket remains level and stable.
5
STEP 5 OF 9
Prepare the internal power switch before hanging
Do this
Keep the external power supply disconnected. Before hanging the kiosk, open the rear access panel, locate the internal power switch shown in the video and set it to the illustrated ON position. Close the panel and check cable clearance.
Complete this access step before mounting against the wall.
6
STEP 6 OF 9
Fit bracket B to the kiosk
Do this
Align bracket B with the rear and lower mounting points. Hand-start the supplied retaining fasteners, then secure the bracket. The installation reference shows two rear and four lower fixing points.
The video references 2 × M4 × 30 mm rear screws and 4 × M6 × 30 mm lower screws. Match these to the hardware supplied with your kiosk.
7
STEP 7 OF 9
Route the cables clear of the engagement area
Do this
Route the power lead through the intended cable opening. Fit the supplied cable grommet where applicable. Route a network lead only where required by your configuration. Leave working slack and keep cables away from hooks, fixing points and cover edges.
The illustration demonstrates the power route. Follow the selected device instructions for its network connection.
8
STEP 8 OF 9
Lift, align and lower the kiosk into place
Do this
With two installers supporting the kiosk, position bracket B above bracket A. Align both engagement points and lower the kiosk evenly until fully seated. Keep supporting it until engagement is confirmed.
9
STEP 9 OF 9
Install the two lower retaining screws
Do this
Locate both lower retaining positions and install the two screws kept from the first step. Tighten using the correct tool and verify that the kiosk is retained by the bracket.
Use the supplied retaining screws. Their dimensions are not specified here.
PAYMENT DEVICE
Install your payment device
These videos are for the ordinary K5. Select the device supplied for your installation and use its matching mounting kit.
Choose your device
Lane 3600
K5 — Lane 3600 installation

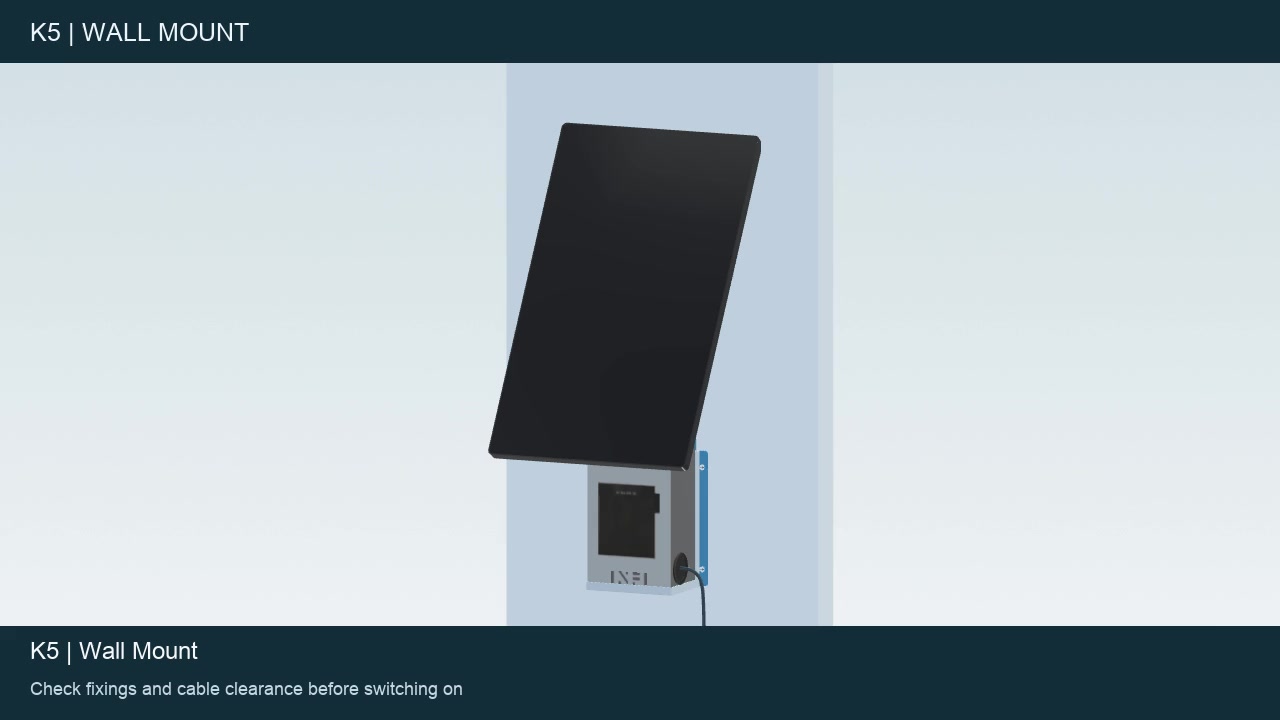

BEFORE HANDOVER
Check the completed installation
After the mounting and payment-device checks are complete, connect the external power supply as specified for your kiosk. Confirm normal start-up on the actual screen.
Checkmarks record your own checks in this browser. Viewing a picture or video does not confirm the installation is complete.
